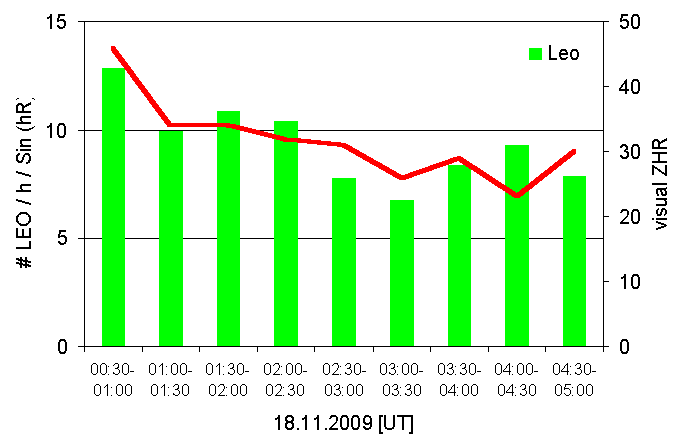

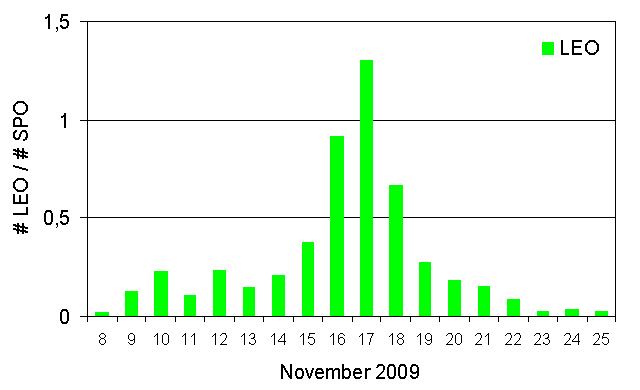

Results of the IMO Video Meteor Network - November 2009 ======================================================= The observing conditions deteriorated significantly in November after the weather had been highly cooperative for three months in a row. In particular south European observing sites, which where privileged so far, enjoyed only a few clear nights, whereas the weather was still acceptable at the more northern locations. Beside the two American observers who enjoyed perfect conditions again, there were only three cameras with twenty or more observing nights. In particular the first part of the month was poor. Weather improved in the second decade just in time for the Leonids, but towards the end the situation became worse again. Thanks to the large number of cameras, we still collected over 2,200 hours of effective observing time and 10,000 meteors. The Leonids were once more the highlight of November. The predictions from different researchers promised ZHRs beyond 150 in the night of November 17/18. The peak was confirmed by the preliminary IMO analysis of visual observations. A ZHR of almost 100 was reached at 20 UT on November 17 - too early for the European video observers. The rate dropped to 40 until midnight with two minor peaks at 23 and 01 UT. Figure 1 gives the complete Leonid activity profile from our November video data. For each night, the number of Leonids was divided by the number of sporadic meteors and averaged over all cameras. First Leonid activity occurred on November 10. As expected, peak activity was detected in the night of November 17/18 - the only night when more Leonids were recorded than Sporadics. Thereafter, the activity declined rapidly and around November 22 the shower was essentially gone. Figure 1: Activity profile of the Leonids in November 2009. Figure 2 shows the detailed profile from the morning of November 18. Here, a subset of 17 cameras was selected, that enjoyed clear skies for a longer period of time. The number of Leonids was counted in half hour intervals and corrected by the radiant altitude. Unfortunately, only the time interval 00:30-05:00 UT could be reasonably covered, i.e. after the peak. During that time, the Leonid activity drops slowly. For comparison, the preliminary visual profile is overlayed, which shows the same trend. That's about all we can read out of the video data. Figure 2: Detailed activity profile from the morning of November 18, 2009. The preliminary visual ZHR profile of IMO is shows as a line. Finally, I would like to discuss an interesting phenomenon. When reading our recent meteor shower analysis, the Japanese video observer SonotaCo stumbled over two strange points in the radiant plot. The figure that shows the difference between the ecliptical longitude of the radiant and the solar longitude against the ecliptical latitude (figure 3), has a concentration of Apex radiants at about 270 degrees. For geometric reasons they are of high velocity, which is why they are mainly plotted in purple. However, there are also two single yellow dots (figure 4), i.e. two relatively strong radiants with a significantly lower velocity. Figure 3: Radiant plot from the comprehensive IMO meteor shower analysis in summer 2009. The x-axis represents the difference between the ecliptical radiant longitude and the solar longitude, the y-axis the ecliptical latitude of the radiant. The radiant velocity is coded by color and the strength by intensity. Figure 4: Magnification from figure 3 with two unusual radiants in the Apex region. A detailed analysis revealed that these two radiants occurred at solar longitude 236 and 237 with a position of alpha=161 deg, delta=16..17 deg and a velocity of 52 km/s. The radiant was the third strongest source in both intervals (1,200 meteors in total) comparable to the northern and southern Taurids. The temporal proximity and the position only a few degrees away from the Leonid radiant suggested these to be artefacts from the Leonids. But how should they arise? My first suspicion was, that one camera was incorrectly calibrated during the Leonid storms. Spot checks revealed, however, that the meteors belonging to these radiants were recorded in different years by different cameras. Remarkably many of them came from image-intensified cameras (no wonder given that these provided the majority of data from the Leonid storms) and occurred near the edges of fov. Larger position and velocity errors are expected there, because the image distortion of intensifiers is much stronger at the edges. But why should these meteors form a distinct pseudo radiant instead of random scatter around the Leonid radiant? A few meteors occurred in line with the original and the "pseudo" Leonid radiant, but there were also high quality meteors (near the center of fov, many frames, good astrometry) showing a clear velocity deviation (about 10% relative) compared to the Leonids. Thus, given the current state of affairs, these two spots are most likely a Leonid artefact, but we have no explanation for their origin. 1. Observers ============ Code Name Place Camera FOV LM Nights Time Meteors -------------------------------------------------------------------------------- BENOR Benitez-S. Las Palmas TIMES4 (1.4/50) 20 dg 3 mag 12 33.5 h 116 TIMES5 (0.95/50) 10 dg 3 mag 19 37.2 h 96 BRIBE Brinkmann Herne HERMINE (0.8/6) 55 dg 3 mag 19 53.4 h 327 CASFL Castellani Monte Baldo BMH1 (0.8/6) 55 dg 3 mag 16 94.8 h 296 BMH2 (0.8/6) 55 dg 3 mag 15 100.7 h 392 CRIST Crivello Valbrevenna C3P8 (0.8/3.8) 80 dg 3 mag 14 102.8 h 537 STG38 (0.8/3.8) 80 dg 3 mag 12 18.5 h 34 ELTMA Eltri Venezia MET38 (0.8/3.8) 80 dg 3 mag 5 23.9 h 83 GONRU Goncalves Tomar TEMPLAR1 (0.8/6) 55 dg 3 mag 9 31.3 h 141 TEMPLAR2 (0.8/6) 55 dg 3 mag 15 50.8 h 199 GOVMI Govedic Sredisce ORION2 (0.8/8) 42 dg 4 mag 14 85.0 h 457 HERCA Hergenroth. Tucson SALSA (1.2/4) 80 dg 3 mag 26 127.7 h 439 SALSA2 (1.2/4) 80 dg 3 mag 25 155.1 h 643 HINWO Hinz Brannenburg AKM2 (0.85/25) 32 dg 6 mag 13 73.0 h 348 IGAAN Igaz Budapest HUBAJ (0.8/3.8) 80 dg 3 mag 12 47.3 294 JOBKL Jobse Oostkapelle BETSY2 (1.2/85) 25 dg 7 mag 10 65.8 h 616 KACJA Kac Kostanjevec METKA (0.8/8) 42 dg 4 mag 10 67.9 h 231 Ljubljana ORION1 (0.8/8) 42 dg 4 mag 13 43.0 h 105 Kamnik STEFKA (0.8/6) 55 dg 3 mag 5 13.2 h 38 KOSDE Koschny Noordwijkerh. TEC1 (1.4/12) 30 dg 4 mag 8 30.6 h 81 TRON1 (1.4/12.5) 30 dg 3 mag 3 6.2 13 LUNRO Lunsford Chula Vista BOCAM (1.4/50) 60 dg 6 mag 23 166.9 h 1019 MOLSI Molau Seysdorf AVIS2 (1.4/50) 60 dg 6 mag 11 68.0 h 793 MINCAM1 (0.8/8) 42 dg 4 mag 22 134.3 h 655 Ketzuer REMO1 (0.8/3.8) 80 dg 3 mag 20 70.8 h 325 REMO2 (0.8/3.8) 80 dg 3 mag 16 66.2 h 296 OCHPA Ochner Albiano ALBIANO (1.2/4.5) 68 dg 3 mag 16 89.1 h 363 SCHHA Schremmer Niederkr. DORAEMON (0.8/3.8)80 dg 3 mag 22 68.8 h 272 SLAST Slavec Ljubljana KAYAK1 (1.8/28) 50 dg 4 mag 10 63.2 h 292 STOEN Stomeo Scorze MIN38 (0.8/3.8) 80 dg 3 mag 8 43.4 h 229 NOA38 (0.8/3.8) 80 dg 3 mag 9 30.6 h 112 SCO38 (0.8/3.8) 80 dg 3 mag 8 40.3 h 227 STORO Stork Ondrejov OND1 (1.4/50) 55 dg 6 mag 1 3.2 34 STRJO Strunk Herford MINCAM2 (0.8/6) 55 dg 3 mag 13 27.5 h 107 MINCAM3 (0.8/8) 42 dg 4 mag 4 7.2 h 21 MINCAM5 (0.8/6) 55 dg 3 mag 8 26.0 h 144 TEPIS Tepliczky Budapest HUMOB (0.8/3.8) 80 dg 3 mag 6 23.9 h 93 YRJIL Yrjola Kuusankoski FINEXCAM (0.8/6) 55 dg 3 mag 5 20.7 h 78 -------------------------------------------------------------------------------- Overall 30 2211.8 h 10546 2. Observing Times (h) ====================== Nov 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 -------------------------------------------------------------------------------- BENOR - - - - - - - - - - - - - - 2.3 - - - 2.5 1.7 1.0 4.4 2.5 2.0 - - 2.7 1.5 1.7 2.5 BRIBE - 4.3 - 0.6 - - - - - - 5.6 0.5 5.4 3.4 2.2 CASFL 7.0 - - 9.6 - 10.1 - - - - - - - - - 5.3 - - - - - - - - 9.4 9.8 3.3 - 1.6 - CRIST - 7.8 5.2 12.1 - 12.0 - - 8.3 10.3 5.8 - - - - - 0.5 3.1 2.4 - 0.4 - - - - 1.0 1.1 - 0.8 - ELTMA 4.7 - - - - - - - - 6.1 9.9 2.1 - - - GONRU - - 0.8 0.8 - - - - - 2.6 - - - - - - 4.2 0.6 2.8 1.2 2.6 - - - 2.9 - - - - - GOVMI - - - - - - - - - - - - - 3.7 3.8 HERCA 6.8 4.0 2.7 7.0 - 5.5 - 3.8 6.3 4.5 4.3 2.0 - 0.7 5.2 7.0 4.7 4.0 6.9 1.4 5.4 - 9.0 8.1 6.1 4.1 3.8 - - 6.1 HINWO 3.2 - - 2.5 1.3 1.4 1.7 - - - 6.5 - 11.0 - - IGAAN - - - - - - - - - - - - 3.7 1.4 1.3 JOBKL - - - - - - 11.4 4.0 - 1.7 - - 1.6 5.0 5.6 KACJA - - - - - - 4.6 - - - - 2.5 7.9 - - 2.3 - - - - - - - 3.3 - 3.5 2.2 1.9 - - - - - - - - - - - - - - - - - KOSDE - 4.2 - - - - 6.8 - - - 2.5 - - - 3.6 - - - - - - - - - - - - - - 3.6 LUNRO 6.7 8.0 6.5 7.2 0.7 - - - 7.8 2.0 3.9 2.8 - - 9.5 MOLSI - - - 3.1 8.6 - - - 0.8 - 3.9 - 11.7 - - - - 2.0 5.5 12.5 - - - 0.6 - 5.3 4.3 12.9 5.9 - - - - - 1.9 3.5 3.2 - - 2.7 - 1.1 5.6 7.7 4.0 - - - - 4.5 0.9 1.3 - - - - - 2.0 2.5 - OCHPA 2.1 - 3.0 6.7 - 4.7 - - - 8.1 10.1 5.8 0.1 2.8 - SCHHA 0.2 4.4 1.2 1.0 2.0 - 1.7 - - - 5.6 - 0.3 3.0 0.5 SLAST - - - - - - - - - - 7.0 4.4 1.5 - - STOEN 7.2 - 1.1 - 2.4 - - - - 12.3 12.5 3.8 - - - 4.0 - 1.1 - 1.2 - - - - 8.1 11.8 2.0 - - - 5.5 - 1.0 - 1.8 - - - - 9.2 12.6 4.1 - - - STORO - - - - - - - - - - - - - - - STRJO - - 0.5 - - 1.2 - - - - - 1.0 3.5 3.3 1.6 - - - - - - - - - - - - 0.2 1.1 - - - 0.5 - - - - - - - - - 1.7 5.4 1.0 TEPIS - - - - - - - - - - - - - - 3.0 YRJIL 3.4 4.5 11.0 - - - - - - - - - 1.3 - - -------------------------------------------------------------------------------- Sum 65.4 46.6 44.3 70.7 41.2 48.7 35.1 19.3 37.2 86.0125.7 49.5 73.8 50.0 55.8 Nov 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 -------------------------------------------------------------------------------- BENOR 1.0 6.1 3.7 2.5 3.6 3.4 1.7 2.3 1.2 2.3 - - 3.4 - - - 1.0 - 1.8 2.2 0.3 2.0 1.7 1.0 2.0 - - 2.7 - - BRIBE 0.4 8.0 3.4 11.1 0.3 - 1.1 0.4 - 2.5 2.3 0.4 0.3 - 1.2 CASFL 1.9 9.5 10.4 7.4 11.4 9.5 0.5 7.0 6.3 1.8 0.6 1.1 0.7 - - - 5.6 10.9 10.4 10.9 12.0 - 9.3 6.8 4.0 0.5 0.9 - - - CRIST - - 12.1 10.1 10.4 1.0 - 4.7 1.0 - - - - - 2.0 2.1 2.0 2.2 0.4 2.5 - - - - - - - - - - ELTMA - 1.1 - - - - - - - - - - - - - GONRU - 9.1 - 1.6 - - - 8.8 6.1 - 0.4 1.1 - - - - 8.1 5.0 0.6 - - 5.0 7.8 2.7 - 2.0 - - 2.8 2.5 GOVMI 10.9 10.8 11.2 8.8 7.1 - - 3.6 5.3 8.1 7.6 1.5 0.8 1.8 - HERCA 6.2 7.4 7.0 8.4 7.2 6.7 7.3 5.3 4.5 5.5 5.5 2.4 1.0 0.5 - 8.5 7.9 7.0 6.6 8.2 6.2 7.9 7.7 6.5 5.8 8.3 6.6 1.3 - - HINWO 0.6 - 12.4 12.5 7.9 11.1 - - - - - - - 0.9 - IGAAN 3.8 5.3 6.5 4.5 - - - 2.2 2.1 10.0 - - 4.5 2.0 - JOBKL - 11.5 - 12.5 - - - 8.6 3.9 - - - - - - KACJA 8.5 10.7 7.7 - 8.8 5.1 - - - 7.3 - - 4.8 - - 1.5 3.6 5.0 1.4 8.9 3.7 - - 4.8 - - - - 0.9 - - 7.0 - 2.0 - 2.8 - - 1.2 0.2 - - - - - KOSDE - 1.8 1.1 9.2 - - - - - - - - - 1.4 - - 1.3 - 1.3 - - - - - - - - - - - LUNRO 10.2 7.5 7.5 7.4 8.2 9.6 4.2 9.9 10.6 8.7 10.0 8.9 - - 9.1 MOLSI - - 10.8 11.2 8.7 3.9 - - - 1.8 3.5 - - - - 4.0 5.5 13.1 13.1 7.2 8.6 3.7 2.7 5.2 2.4 1.5 4.3 10.9 3.1 - 1.7 5.7 0.3 8.4 1.9 3.4 5.3 0.6 - 2.7 4.4 2.7 - 4.0 - - 5.0 1.2 8.6 3.1 1.6 13.5 2.0 - 5.4 9.7 4.1 - 0.8 - OCHPA - 8.0 7.6 9.7 8.6 - - - 4.8 - - 1.1 5.9 - - SCHHA 0.3 11.3 4.5 7.7 - - 1.4 5.1 2.4 8.2 1.8 1.4 0.6 - 4.2 SLAST - 7.6 8.8 4.8 12.2 8.4 - 4.8 3.7 - - - - - - STOEN - - - - - - - 3.5 0.6 - - - - - - - - - 1.1 - - - 1.0 0.3 - - - - - - - - - 1.1 - - - 5.0 - - - - - - - STORO - 3.2 - - - - - - - - - - - - - STRJO 0.9 1.5 - 6.9 - - 3.2 1.0 - 0.7 2.2 - - - - - - - 5.4 - - 0.5 - - - - - - - - 2.0 2.7 - 12.0 - - 0.7 - - - - - - - - TEPIS - 4.9 2.9 7.2 3.2 - - - - - - - 2.7 - - YRJIL - - - - - 0.5 - - - - - - - - - -------------------------------------------------------------------------------- Sum 64.5180.7162.3217.7142.5 97.8 58.0105.0 81.0 79.4 60.3 36.5 39.6 18.2 19.0 3. Results (Meteors) ==================== Nov 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 -------------------------------------------------------------------------------- BENOR - - - - - - - - - - - - - - 5 - - - 8 7 2 10 5 7 - - 5 2 3 5 BRIBE - 25 - 2 - - - - - - 39 3 18 20 6 CASFL 14 - - 25 - 29 - - - - - - - - - 14 - - - - - - - - 49 38 10 - 8 - CRIST - 69 11 66 - 75 - - 41 67 34 - - - - - 1 3 4 - 1 - - - - 2 2 - 2 - ELTMA 14 - - - - - - - - 22 42 4 - - - GONRU - - 1 1 - - - - - 8 - - - - - - 11 2 12 3 12 - - - 7 - - - - - GOVMI - - - - - - - - - - - - - 25 9 HERCA 20 8 8 24 - 15 - 13 19 15 13 6 - 3 19 26 11 13 27 2 15 - 32 32 15 19 9 - - 20 HINWO 9 - - 3 2 7 2 - - - 48 - 50 - - IGAAN - - - - - - - - - - - - 21 4 4 JOBKL - - - - - - 134 32 - 13 - - 10 47 29 KACJA - - - - - - 15 - - - - 3 28 - - 6 - - - - - - - 10 - 5 5 3 - - - - - - - - - - - - - - - - - KOSDE - 14 - - - - 20 - - - 6 - - - 9 - - - - - - - - - - - - - - 6 LUNRO 60 52 27 37 3 - - - 34 21 12 10 - - 43 MOLSI - - - 22 69 - - - 9 - 17 - 145 - - - - 5 25 76 - - - 2 - 11 10 48 35 - - - - - 3 11 7 - - 7 - 2 20 29 24 - - - - 16 2 3 - - - - - 9 17 - OCHPA 4 - 8 24 - 15 - - - 38 47 25 2 10 - SCHHA 1 13 5 2 7 - 4 - - - 22 - 2 11 2 SLAST - - - - - - - - - - 18 10 6 - - STOEN 16 - 4 - 3 - - - - 75 103 16 - - - 6 - 2 - 2 - - - - 40 49 6 - - - 17 - 1 - 5 - - - - 75 97 17 - - - STORO - - - - - - - - - - - - - - - STRJO - - 1 - - 4 - - - - - 3 7 19 6 - - - - - - - - - - - - 1 4 - - - 1 - - - - - - - - - 13 37 12 TEPIS - - - - - - - - - - - - - - 9 YRJIL 9 18 42 - - - - - - - - - 7 - - -------------------------------------------------------------------------------- Sum 216 222 134 282 198 188 195 82 154 452 622 146 392 274 208 Nov 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 -------------------------------------------------------------------------------- BENOR 1 29 10 5 12 13 5 8 6 13 - - 9 - - - 2 - 7 5 1 5 4 4 5 - - 9 - - BRIBE 2 82 33 49 1 - 14 2 - 14 11 2 1 - 3 CASFL 2 43 40 19 37 33 1 19 24 5 1 2 2 - - - 30 54 27 47 48 - 30 27 7 1 2 - - - CRIST - - 62 32 61 2 - 13 1 - - - - - 3 6 3 4 1 5 - - - - - - - - - - ELTMA - 1 - - - - - - - - - - - - - GONRU - 61 - 3 - - - 35 29 - 1 2 - - - - 56 27 2 - - 12 27 10 - 8 - - 3 7 GOVMI 98 84 50 49 30 - - 15 27 45 14 2 2 7 - HERCA 30 42 35 34 22 19 16 22 12 16 15 9 2 2 - 41 58 46 35 30 28 31 32 35 28 35 20 3 - - HINWO 6 - 62 57 41 55 - - - - - - - 6 - IGAAN 17 95 50 9 - - - 4 7 38 - - 20 25 - JOBKL - 97 - 132 - - - 83 39 - - - - - - KACJA 34 41 36 - 28 16 - - - 21 - - 9 - - 1 16 12 5 29 4 - - 8 - - - - 1 - - 26 - 3 - 4 - - 4 1 - - - - - KOSDE - 4 4 20 - - - - - - - - - 4 - - 3 - 4 - - - - - - - - - - - LUNRO 72 78 62 37 66 31 11 51 66 64 70 53 - - 59 MOLSI - - 168 167 85 53 - - - 15 43 - - - - 23 58 91 71 21 54 16 11 22 5 5 15 31 20 - 6 91 1 50 3 5 16 3 - 13 13 9 - 12 - - 26 4 56 8 7 45 10 - 32 32 22 - 7 - OCHPA - 41 40 38 39 - - - 18 - - 2 12 - - SCHHA 1 65 31 26 - - 6 19 7 24 4 6 1 - 13 SLAST - 39 35 11 111 28 - 7 27 - - - - - - STOEN - - - - - - - 11 1 - - - - - - - - - 1 - - - 5 1 - - - - - - - - - 1 - - - 14 - - - - - - - STORO - 34 - - - - - - - - - - - - - STRJO 2 8 - 31 - - 9 5 - 3 9 - - - - - - - 15 - - 1 - - - - - - - - 7 16 - 56 - - 2 - - - - - - - - TEPIS - 31 7 26 11 - - - - - - - 9 - - YRJIL - - - - - 2 - - - - - - - - - -------------------------------------------------------------------------------- Sum 349 1260 964 1079 692 403 190 430 375 349 262 146 110 87 85 Sirko Molau, 2010/01/13
